Handicap Press Button Smart Switches

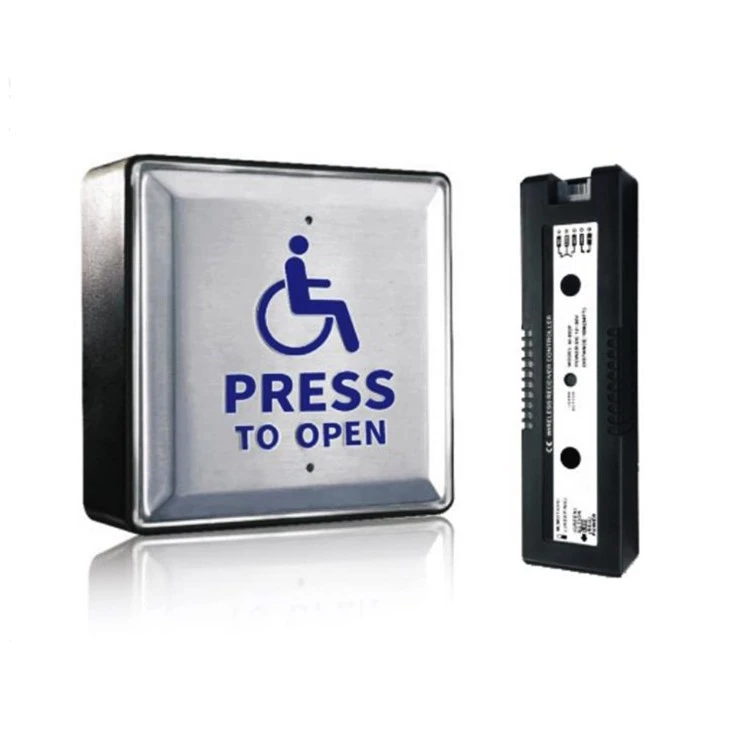

CANBO  M-510  Handicap Press Button Smart Switches







: 2.4G wireless switch, with a receiver, also can be replaced a TUYA receiver, to achieve remote control by phone APP
: It is all made by stainless steel material, square type with 5.08"/129mm bottom mount box, slim type with 4.76"x2"/121x51mm bottom mount box

: The sensing distance of infrared technology is 3-30cm, capacitive technology is 0-6 cm generally.











1, touchless infrared sensor switch, clean and hygienic
2, 2.4G wireless switch, can match M-TY TUYA receiver, mobile phone remote control door opening
3, two output signal mode selectable, inching mode and holding mode, to adapt to more on-site needs
4, the style design, size, material is diverse, many choices for your reference
5, there are text, light indication, palm and wheelchair mark, convenient for users
6, support custom logo and text marks



①The wireless function of this product adopts self-learning code, and the transmitter must be matched with the receiver before use it. It can learn up to 20 transmitters.

③Delete method: Press and hold the learning button of the receiver for 5 seconds, the red and green lights flashes quickly and alternately, all codes are deleted successfully.



This handicap symbol door access push button is perfect workable with kinds of automatic door openers and automatic door access control system. The complete operation and realization of the entire function requires at least 1 receiver and 1 switch along with the automatic door system. And the receiver and the switch are packed separately in an inner box. So we support selling individually or in sets, 1pc receiver plus 1pc switch for a set, or 1pc receiver plus 2pcs switches for a set, depending on your need.



Power supply: AC/DC 12-30V
Static current: 30mA(DC 12V power supply)
Action current: 74mA(DC 12V power supply)
Relay contact capacity: 3A, 30V DC
Dimension: 110mm(L)×30mm(W)×15mm(H)



Power supply: 3V(2pcs 1.5V LR6 batteries)
Transmitting current: 12.4mA
Battery life: more than 20000 times
Static current: Less than or equal to 10μA
Launch distance: more than 30 meters
Working temperature: -42 degree ∽45 degree
Working humidity: 10∽90 percent RH
Product size: 129mm(L)×129 mm(W)×46 mm(H)





1, Quality assurance
Shenzhen Winfor Canbo Technology Co., Ltd was founded in 2006, engaged in automatic door access control accessories industry for many years, complete production and testing procedures, with good quality control, manufacturer direct supply, and after-sales guarantee.

2, More advantageous pricing
We are a manufacturer, integrating from R&D, production and sales. Factory supply with better price, also we use tiered pricing and based on order quantity, it will be fairer and represents the sincerity of long-term cooperation between us.


3, One-stop shopping



A1: When will I learn the cost?



Q2: Where can we visit and try your product?

A: 1, online contact us and place a trial order of our product; 2, we will often post some product pictures and live videos on our social media, like LinkedIn & YouTube, please stay tuned and contact us freely; 3, we will attend some related trade fair, most of them are in China at present, you can see them onsite; 4, our company and factory is located in Shenzhen city, CN, welcome to visit our factory.



Q3: Can you assist with supplying any additional product requirements we may have that aren't covered on your page?

A: When you get in touch with us, an e-catalog will be sent to you right away. In addition, we have a skilled engineering staff with extensive knowledge to support this kind of unique product. Please send us any questions or drawings you may have.
